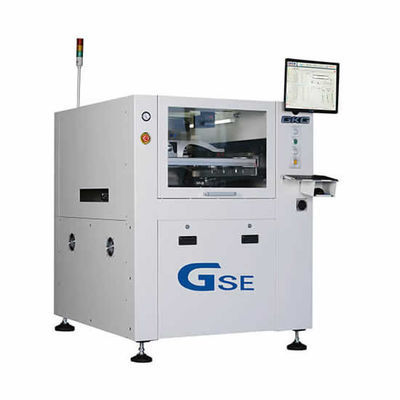

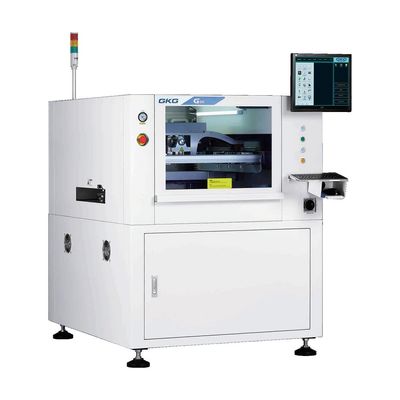

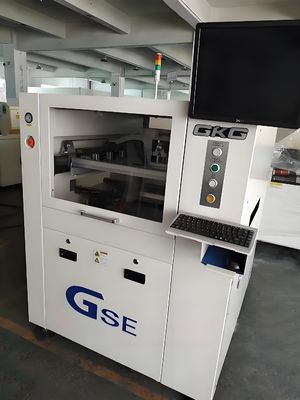

High Precision GKG GSE Fully Automatic Solder Paste Printer SMT Stencil Printer Screen Printing Machine for SMT Assembly Line
Description
The GKG GSE automatic stencil printer utilizes a uniform ring light and high-brightness coaxial light, equipped with an adjustable brightness function. This ensures that all types of mark points can be accurately recognized, including those that are rugged. The printer is suitable for various types of PCBs, including those with tin plating, coppering, gold plating, tin spraying, and FPC, regardless of color.
Featuring GKG's patented mathematical model, the printer guarantees high precision. The GKG GSE's full-automatic stencil printer cleaning system is equipped with three cleaning methods: dry cleaning, wet cleaning, and vacuum. These methods can be used in combination or manually if the customer prefers to reduce cleaning time and enhance production efficiency. The newly designed wiping system ensures full contact with the stencil, and increased vacuum suction effectively removes residual paste from the mesh, achieving effective automatic cleaning.
The CCD component and cleaning system of the GKG GSE solder paste printer are separated. When the CCD is in operation, it moves independently to reduce the load on the servo motor, thereby improving machine speed and accuracy. The printer's highly adaptable steel mesh frame clamping system can print screen frames of all sizes and allows for quick model changes during production line operations.
Main technical parameters of GKG GSE automatic solder paste printing machine:
(1) Printing accuracy: ±0.025mm
(2) Repeatability: ±0.01mm
(3) Printing cycle: <7.5s
(4) The size of the screen frame ranges from 420×520mm—737×737mm
(5) Printable PCB size ranges from 50×50mm—400×310mm
Charmhigh factory real production video:
https://www.youtube.com/watch?v=R3ir1PpvFo4
| GKG GSE automatic stencil printer specification: |
| Model |
GSE |
| Stencil Frame |
Min. size |
370*370mm |
| Max. size |
737*737mm |
| PCB |
Min. size |
50*50mm |
| Max. size |
400*340mm |
| PCB Thickness |
0.4–6 mm |
| PCB Bottom Clearance |
15 mm |
| GAP (snap off) |
0 – 20 mm |
| Conveyor Height |
900 ±40 mm |
| Conveyor Direction |
L>R, R>L, R>R, L>L (software controlled) |
| Conveyor Width Adjustment |
Auto |
| Conveyor Speed |
1500mm/s(MAX), Program Control |
| Transfer method |
One stage transport rail |
| I/O Interface |
SMEMA |
| PCB Location |
Support System |
magnetic pin, support block, and manually adjust the working platform |
| Clamping System |
over the top and flexible side clamping |
| Squeegee Pressure |
0 – 10 kg |
| Print Speed |
10 – 200 mm/s |
| Cleaning System |
Auto wet/dry/ vacuum (3 ways) |
| CCD FOV |
8 x 6 mm |
| Fiducial Alignment |
Auto |
| Printing Mode |
Single or double squeegee printing |
| Squeegee Type |
Rubber squeegee/steel squeegee (angle 45/55/60) |
| Vision |
look up/down system, digit camera, Geometric matching positioning |
| Machine Performance |
| Repeat Position Accuracy |
±0.01 mm |
| Printing Accuracy |
±0.025 mm |
| Cycle Time |
< 8 s |
| (exclude printing & cleaning time and camera) |
| Machine Operating Requirements |
| Air Supply |
4 – 6 bar |
| Power Supply |
AC, 220 V ± 10%, 50/60 Hz, single phase |
| Power Consumption |
3 kW |
| Operating Temperature |
-20℃~+45℃ |
| Operating Humidity |
30 – 60 % |
| Printer Control |
PC controlled |
| Machine Dimensions |
1158 x 1362 x 1463 mm (L x W x H) |
| Operating System |
Windows XP or higher |
| Machine Weight |
approx. 1000 kg |
| The specific description may change with technological development and progress. If the product does not match, the actual product shall prevail. |

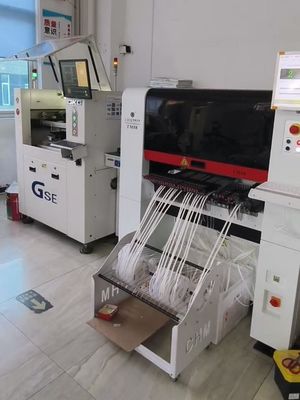

Full automatic SMT production line facotory site:
Charmhigh SMT factory production line, we produce PCB every day to ensure the machine's stability:
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
